Bafang H405 / G0210 Rear 250W / 500W Hub Motor

Price range: £150.00 through £205.00

This rear-drive motor provides reliable support with a rated power of 500W and a maximum torque of 55Nm. Strong and efficient, this motor is built well, provides a good level of torque and is suitable for a wide range of E-Bike builds.



BEFORE ORDERING CONTACT US IF YOU HAVE ANY COMPATABILITY QUESTIONS

FULL DESCRIPTION – SCROLL DOWN

Support small, independent UK business

  • Actual UK stock
  • Quality packaging – either biodegradeable or re-used packaging
  • Excellent customer service
  • UK tax paid, unlike Amazon
Payment Options

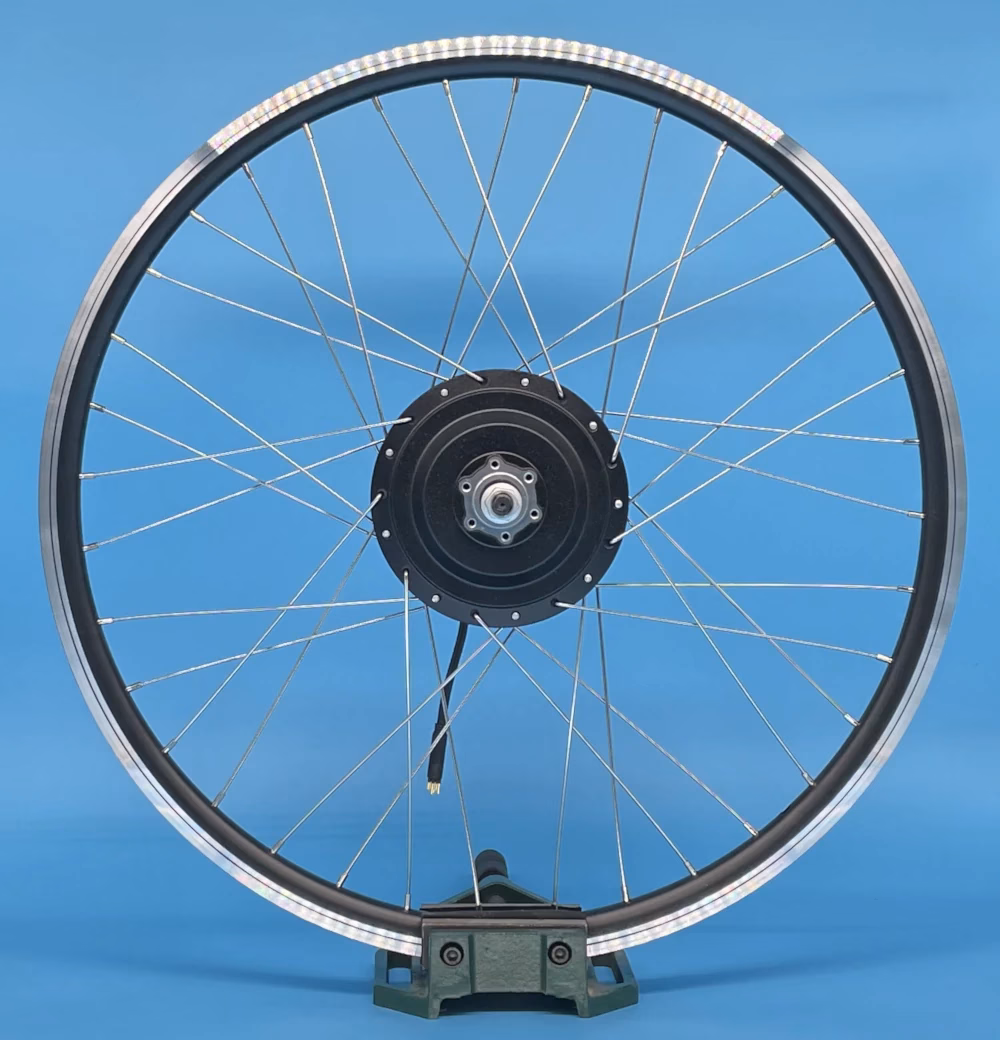

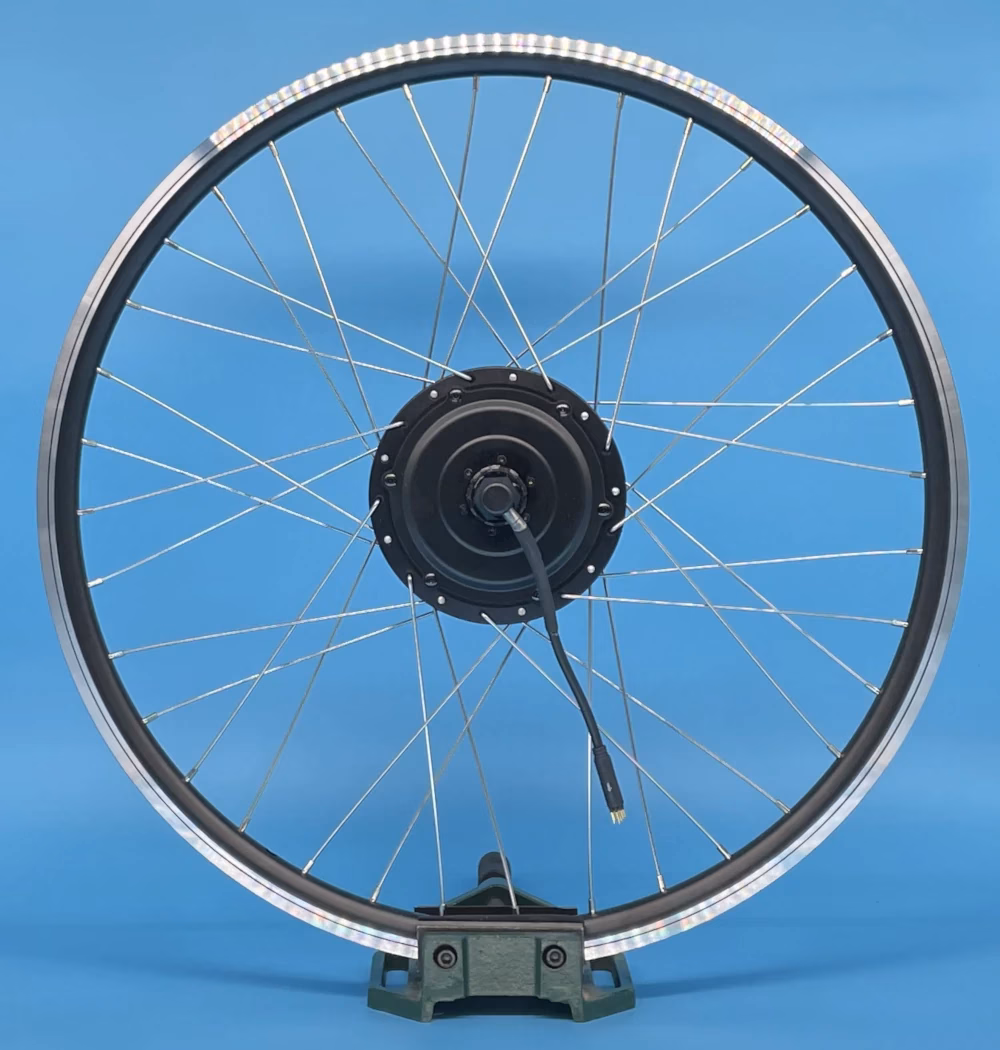

Bafang H405/G0210 Rear 250w / 500W Geared Hub Motor – Reliable Power & Smooth Performance

This rear-drive geared hub motor can be bought configured and marked for 2 power ratings. 250W and 500W rated power with a strong maximum torque of 60Nm, making it an excellent choice for a wide range of e-bike builds. The G0210 is built with strength and longevity in mind. It is designed for reliability and efficiency, the Bafang H405/G0210 motor offers smooth, quiet operation that won’t let you down.

SPECIFICATIONS

  • Motor Model: H405 RM G0210.500.D/DC    +    H405 RM G0210.250.D/DC

  • Motor Type: Rear Geared Hub

  • Rated Voltage: 48V

  • Rated Wattage: 250W / 500W

  • Torque: 60Nm

  • Weight: 3.4Kg

  • Brake Compatibility: Disc brake

  • Cable Exit: Right-hand side (drive side) end of axle

  • Spoke Specs: 36 Hole, 13G spokes

  • Sprocket Type: Cassette

  • Ingress Protection: IPX6 (water-resistant)

  • Axle Dimensions: 10mm across the flats, 12mm at it’s widest

DIMENSIONS – See Picture in Gallery Above

= 40mm

= 145mm

= 44mm

= 15.25mm

= 40mm

= 138

PORTANT NOTES

  • UK road legal limit for e-bike motors is 250W maximum; if the motor is rated higher, it is not road-legal.

  • Always use the supplied disc rotor bolts. Using longer bolts can cause internal grinding and prevent the motor from rotating properly.
