This battery pack is within the case designed known as the frog battery.
It is 48V nominal charge, 10.4ah capacity and comes completed with compatible 2A charger. The battery is terminated with a female XT60 connector as shown in the picture/video above.

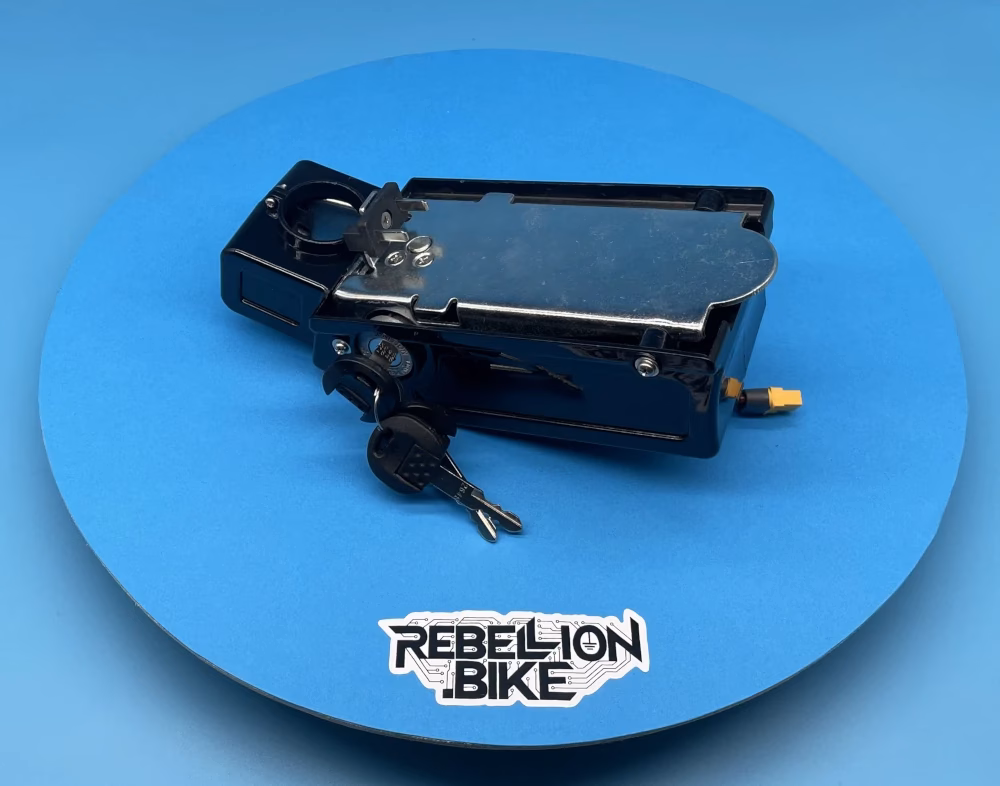

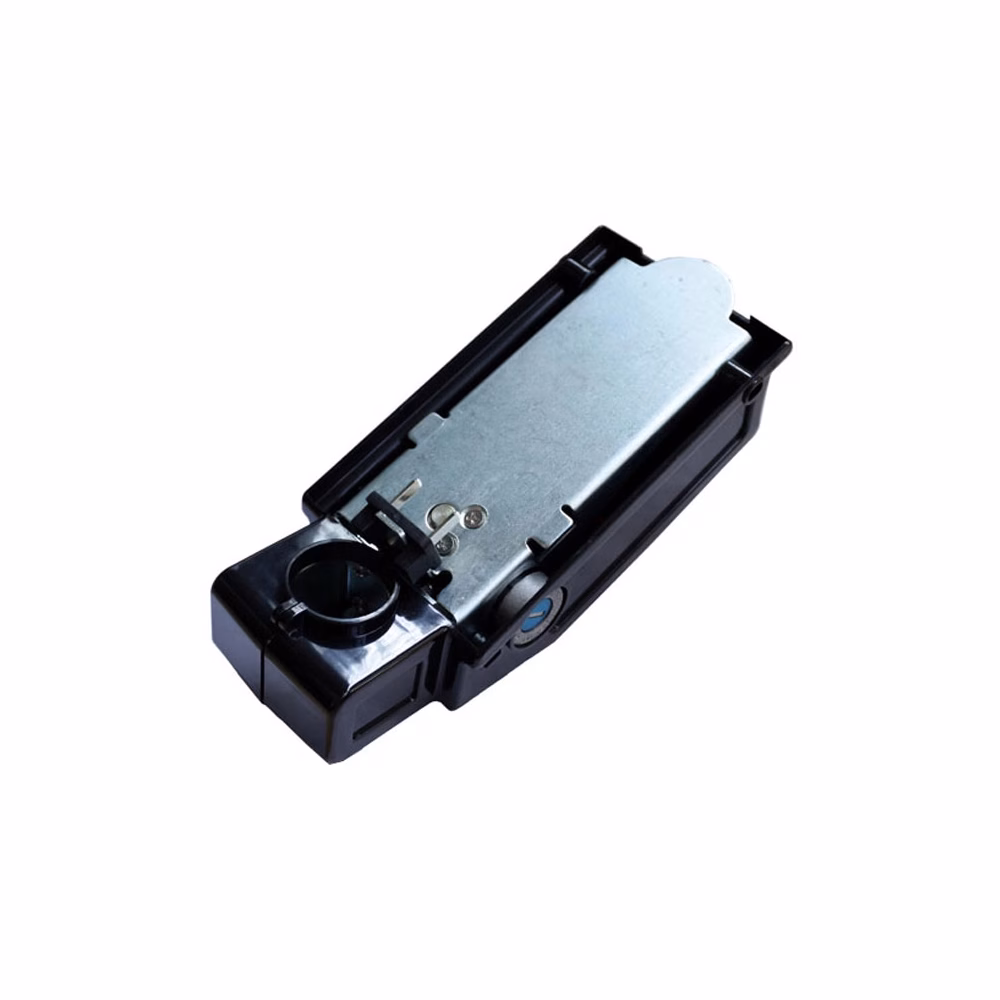

There is just enough room to fit the smallest 250W Bafang external controller that we sell within the battery mount of this unit. Meaning you can contain both the battery and controller withing this item for a low profile, road legal conversion.
It is a removable design, meaning the battery can be removed from the bike for charging and security when locking up your bike. When on the bike it is secured by a key lock, but key locks on ALL batteries should never be relied on for security purposes. It is always best to remove the battery if leaving the bike unattended.
It is designed to be fitted to your seat post, so please ensure you have enough room for it under your seat by checking the dimensions of the product below.
Battery Chemistry = Lithium-ion
Battery Cell Type = Samsung 35E
Continuous Discharge Current = 15A
Peak Discharge Current = 30A
Total Weight = 3.41Kg
Weight of Battery = 2.63Kg

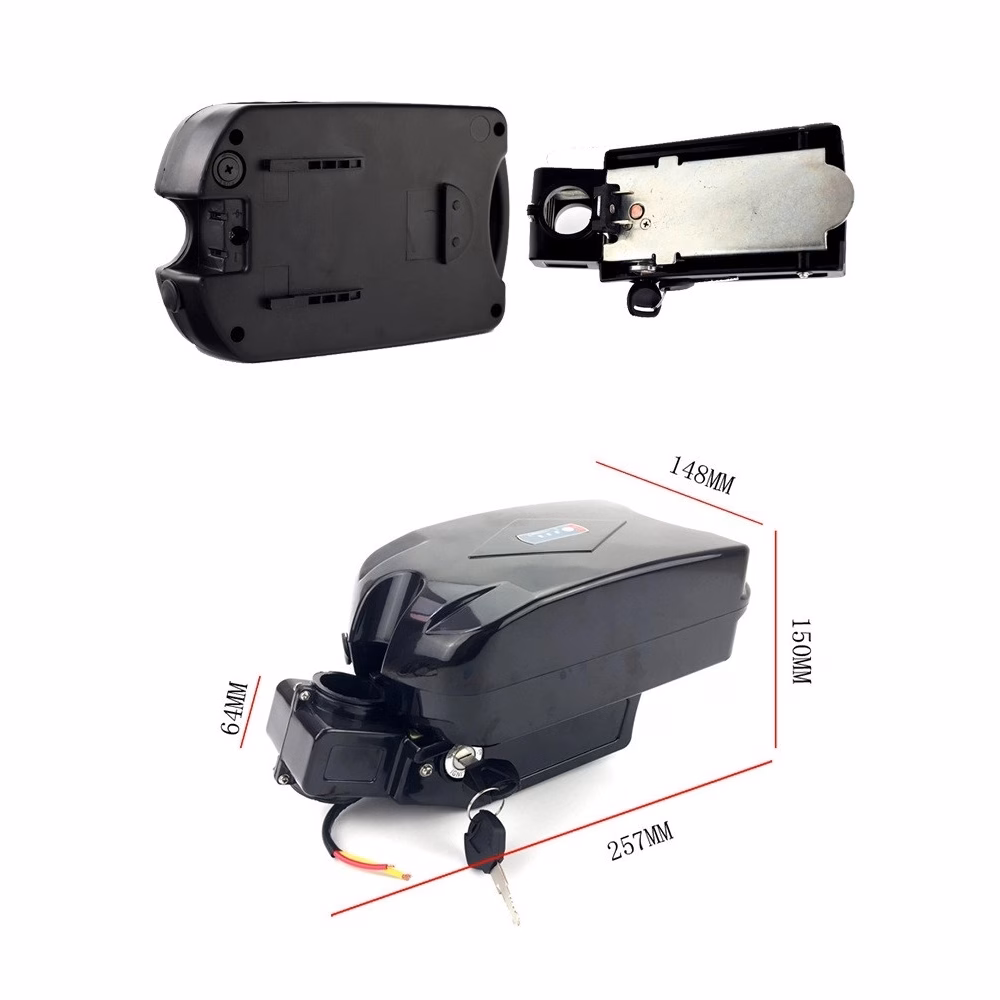

Dimensons of base/mount = 245mm Long, 98mm Wide, 65mm Tall
Dimensions of battery = 255mm Long, 148mm Wide, 83mm Tall
This battery can only be sent to England, Scotland and Wales
